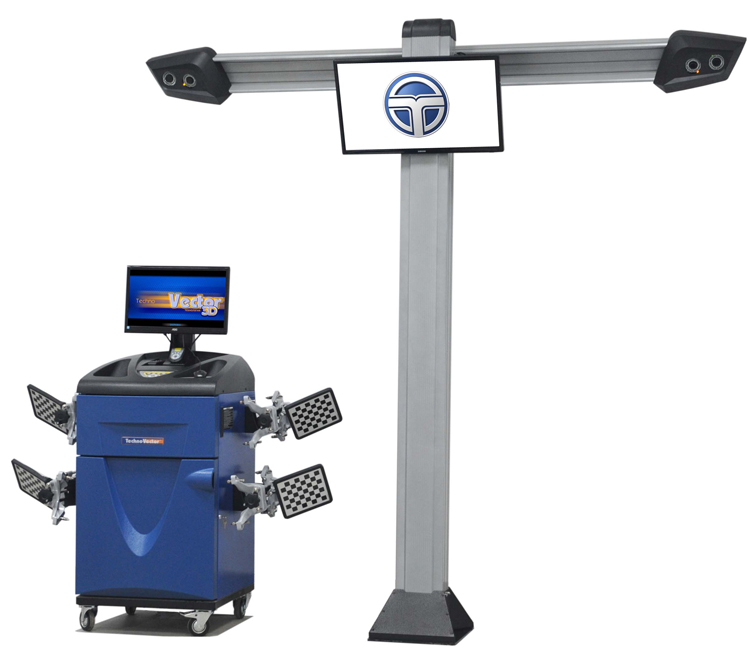

Automas computer-aided wheel aligners 7 is based on machine vision system.
High-definition cameras allow a quick and reliable target "capture" and a high-speed image transfer to the PC over TCP/IP.
|
The use of 3D technologies allows high-precision measurements. Special camera firmware promotes a high speed screen refresh. |
|||
|
Integrated storage for targets and wheel adapters on the computer cabinet. |
The adapter and the target can be moved easily at the same time. |
The wheel adapter and the target can be mounted easily at the same time. |
Rolling compensation. |
|
The most innovative computer-based wheel alignment machine
|
|||
Positioning instrument detail parameter table
| Item | measure | Max deviation | Average deviation |
| Front wheel toe-in | ±8° | ±3′ | ±2′ |
| Front wheel camber | ±5° | ±3′ | ±2′ |
| King pin inclination | ±19° | ±8′ | ±5′ |
| King pin caster | ±19° | ±8′ | ±5′ |
| rear wheel toe-in | ±8° | ±3′ | ±2′ |
| rear wheel camber | ±5° | ±3′ | ±2′ |
| Rear wheel angle | ±2.5° | ±3′ | ±2′ |
| Front wheel angle | ±2.5° | ±3′ | ±2′ |
| Thrust angle | ±2.5° | ±3′ | ±2′ |
| Rolling radius | ±2.5° | ±3′ | ±2′ |
